Description

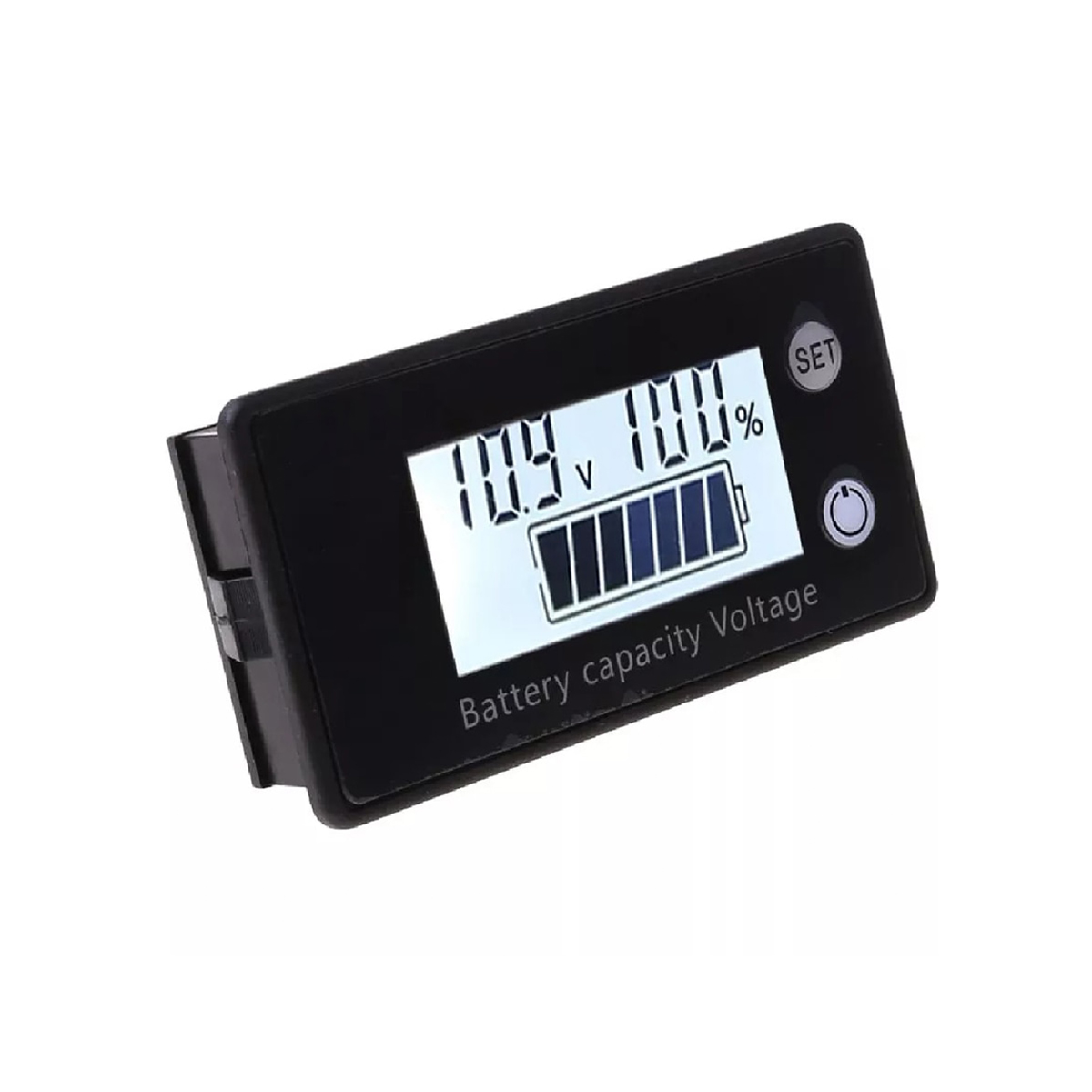

The Battery Capacity Indicator DC 8V-100V is a must-have diagnostic tool for anyone relying on battery backup systems in 2026. At Ryksolar, we understand that knowing your battery’s exact status is vital to prevent deep discharge and prolong battery life. This universal battery percentage indicator provides a clear, real-time visualization of your battery’s remaining energy, whether you are using a 12V car battery, a 24V UPS setup, or a high-end 48V Lithium-ion solar bank.
Why Install a Digital Battery Capacity Indicator?
Many inverters only show basic bar graphs that are often inaccurate. The Battery Capacity Indicator DC 8V-100V uses a high-precision microprocessor to calculate the state of charge (SoC) based on the specific chemistry of your battery. It acts as a universal battery fuel gauge, showing both the precise voltage and the percentage (0% to 100%). This is especially critical for Lithium (LiFePO4) batteries, where the voltage curve is very flat and hard to read with standard meters.
-
Universal Compatibility: Supports Lead-acid, Lithium-ion, and LiFePO4 batteries from 8V up to 100V.
-
Dual Display Mode: Toggle between Voltage (V) and Percentage (%) with a single front-facing button.
-
Low Power Consumption: Features a built-in “Sleep Mode” and an “Off” switch to ensure it doesn’t drain your battery while monitoring.
-
Visual Alarm: The LCD screen flashes to alert you when the battery capacity falls below a safe threshold.
-
Easy Installation: Simple two-wire connection (Red and Black) for instant setup on any DC power source.
Battery Percentage Indicator Price in Pakistan (2026)
The battery percentage indicator price in pakistan is a small investment for the protection of your expensive battery bank.
-
Standard 12V-48V Indicator: Rs. 1,450 – Rs. 1,950
-
Premium DC 8V-100V Universal Meter (Color LCD): Rs. 2,200 – Rs. 3,500
-
Bluetooth Smart Battery Monitor: Rs. 8,500 – Rs. 12,500
-
Panel Mount Voltage & Percentage Meter: Rs. 1,800 – Rs. 2,800
At Ryksolar, we provide the latest dc voltage capacity tester models that include temperature monitoring and customizable battery curves.
Internal Link: To keep your batteries charged efficiently, check out our range of MPPT Solar Charge Controllers.
Technical Specifications
Our Battery Capacity Indicator DC 8V-100V is designed for the high-temperature environments often found in UPS and Solar rooms.
| Feature | Specification |
| Voltage Range | DC 8V – 100V (Adjustable) |
| Compatible Batteries | Lead-acid, Ternary Lithium, LiFePO4 |
| Working Current | < 15mA (Low Power) |
| Display Resolution | 0.1V / 1% |
| Dimensions | 61.3 x 33.3 x 13.5 mm |
| Mounting Hole Size | 58.5 x 28.5 mm |
Optimizing Your Battery Life
Using a lithium battery capacity checker is essential for maintaining the “Health” of your storage system. Deep discharging a lead-acid battery below 50% or a Lithium battery below 10% can permanently damage the cells. By using this 12v 24v 48v battery monitor, you can set manual alerts to disconnect loads before damage occurs. For a deeper understanding of battery chemistries and discharge cycles, you can refer to the Battery University technical guides, which explain why accurate monitoring is the key to longevity.
Why Buy from Ryksol Energy?
We are the experts in energy storage in Pakistan. Every Battery Capacity Indicator DC 8V-100V at Ryksolar comes with a pre-set configuration guide for the most common battery types used locally. We understand that a “one size fits all” approach doesn’t work for batteries, so we only stock meters that allow for manual calibration. Whether you are building an electric bike or a massive off-grid solar farm, we have the right universal battery fuel gauge for you.
Internal Link: Pair this indicator with our Dyness 48V 100Ah Lithium Batteries for a professional energy setup.
Conclusion: Professional Monitoring for Every Battery
The Battery Capacity Indicator DC 8V-100V provides the peace of mind you need to run your home on backup power. Don’t rely on guesswork—get the exact percentage of your power reserve. Shop at Ryksolar today and get the most reliable battery percentage indicator price in pakistan.
Learn more about our battery maintenance tips at our About Us page. (Internal Link)
