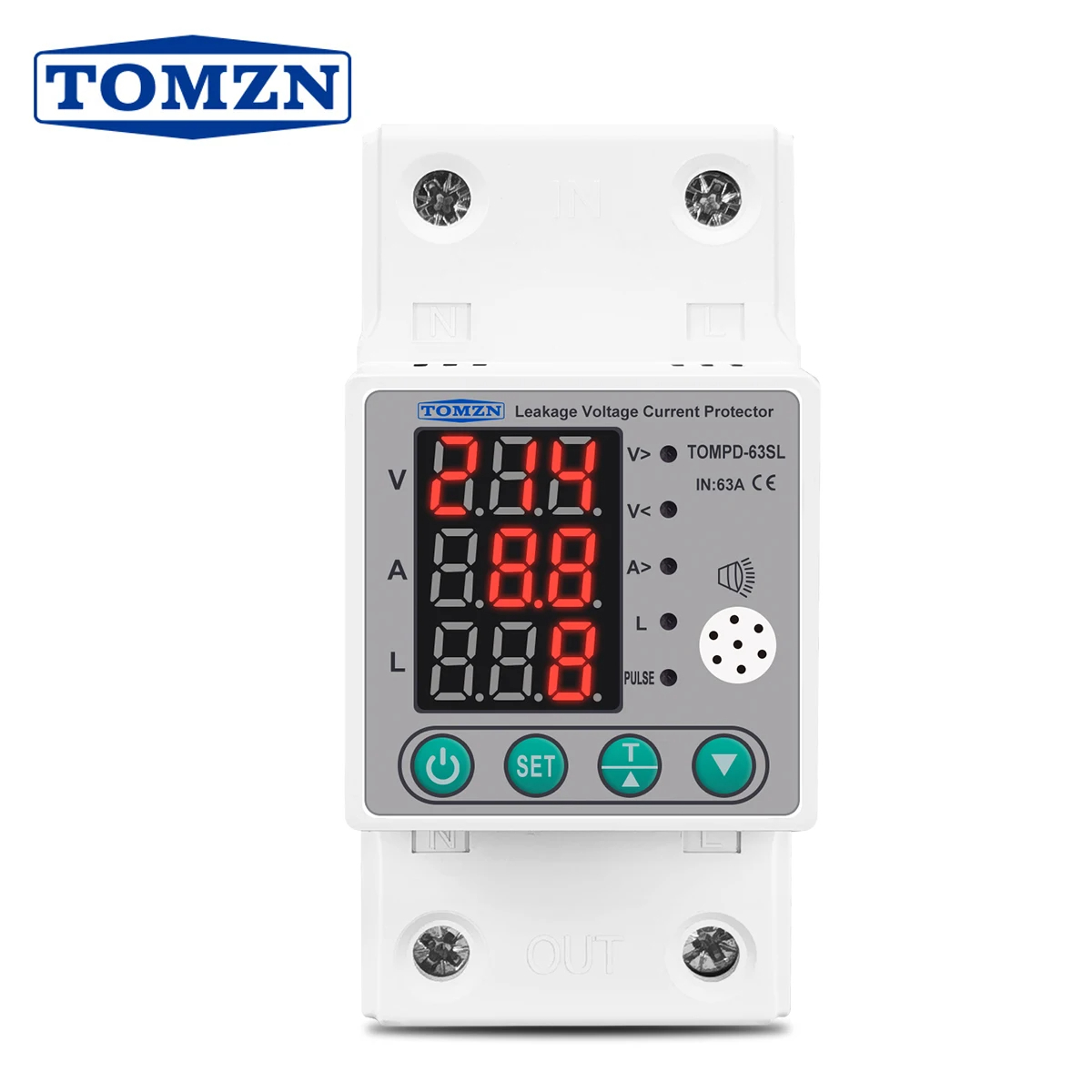

Automatic Reconnect Over And Under Voltage Over Current Leakage Protection Surge Protect Protector Relay kwh

Description

This Protector can cut off L and N at same time.

Rated voltage: 230V;

Frequency: 50Hz/60HZ
Function:
1. Under voltage protection 140V-210V (adjustable) (default: 170V)
2. Over voltage protection 230V-300V (adjustable) (default: 270)
3. Over current protection 1A-63A (adjustable) (default: 63A)
4. Reconnect time (delay on time): 1s-500s (default: 30s)
5. Electric leakage protection:10-99mA
6. Power display range：0-99999.9kwh
7.Voltage/current/kW calibration: -9.9%-9.9%
8. Voltage meter
9. Ammeter
10. Energy meter

11. Reconnect when voltage and current back to normal
